Brand : COT
Model / Type : PLE6800
CoO : China

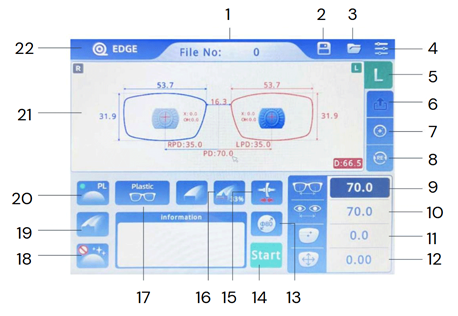

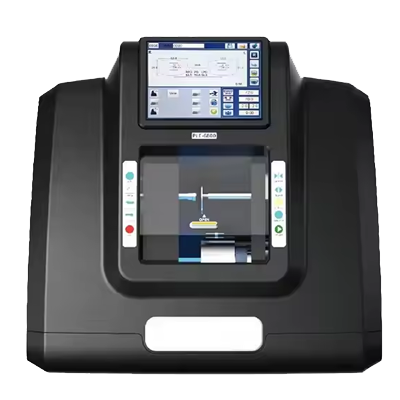

Super – large and super – clear touch screen,super cost performance. Split module design, convenient and simple after – sales maintenance to save time and cost ultra – high speed and grinding efficiency with motor w/o belt, axis displacement is almost perfect.

Edger Technical Index

• Max. number of the stored images : 1000 PCs
• Max. cutting diameter : 80mm
• Mini. beveling size : 26mm
• Mini flat edging size : 25mm
• Max. frame center distance : 100mm
• Diameter of diamond wheels group : 100mm x 3
• Display : 10.4″ TFT LCD Touch Screen
• Input voltage : AC 220V 50Hz, AC 110V 60 Hz
• Output voltage : DC 5V 4.6A, DC 24V 4.6A
• Power consumption : 1 Kw
• Beveiling postion : Stepless adjustment (20%-80%)
• Gross Weight : 70 Kg
• Nett Weight : 51 Kg
• Dimensions : 700 mm x 580 mm x 750 mm

Brand :
Model / Type : SJG6500
CoO : China

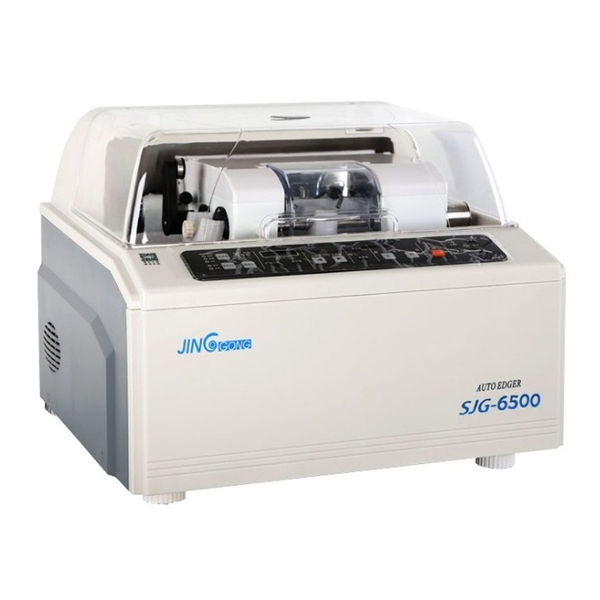

With the advanced technology and the imported PC wheel, SJG- 6500 Automatic Edger (PC Lens Compatible) gives the best performance in processing PC lens, as well as the normal CR39 lens and the glass lens.

Techinical Standard

• Lens Diameter : Ø18-Ø80mm
• Lens gripping force : multi-steps
• Stand wheel diameter : Ø100mm
• The speed of the sand wheel : 16.7m/s
• Power : AC 220V (110V)/ 50HZ (60Hz), 400VA
• Working temperature : 5°C-40°C
• Size of the machine : 520 x 480 x 380
• Weight : 44 kg
• Circulating water connection or city water connection
