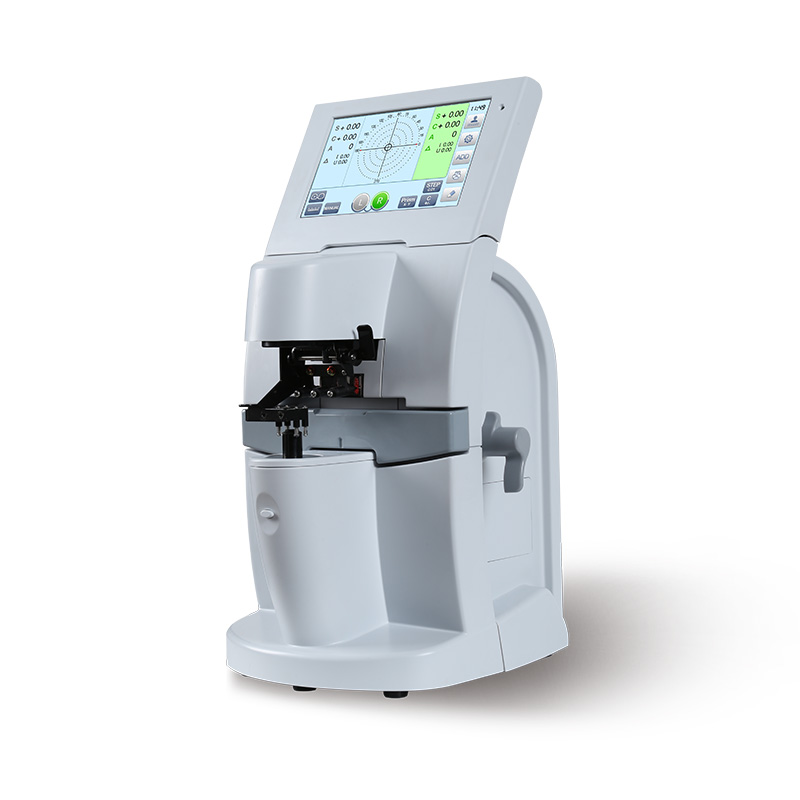

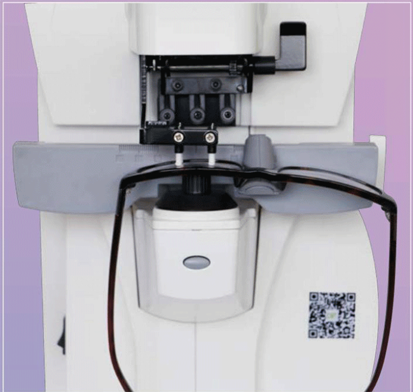

Auto Lensmeter – GD 6045A

Features

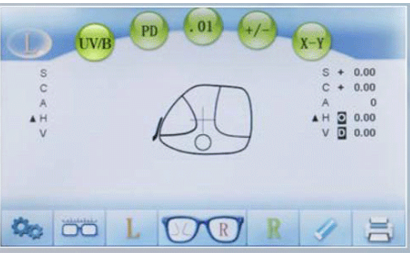

  • Colorful touch screen
  • With printer and PD, inner UV part

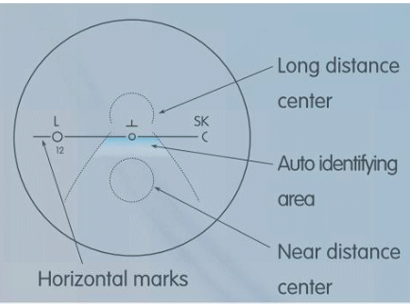

  • Automatic recognition of single and progressive lens
  • Strong aluminum case for single packing

SPECIFICATIONS

Measurement Scope

  • Sphere : 0 to ±25D(0.01D, 0.12D, 0.25D steps)
  • Cylinder : 0 to ±9.99D(0.01D, 0.12D, 0.25D steps)
  • Axis : 0-180° (1° steps)
  • ADD : 0 to 9.99D (0.01D, 0.12D, 0.25D steps)
  • Prism : 0 to 15Δ(0.01Δ, 0.12Δ, 0.25Δ steps)

Mode

  • Cylinder : +, +/-,-
  • Prism : X-Y,P-B
  • Contact Lens : Soft / Hard
  • Measuring Mode : Single/ Progressive/ Automatic recognition contact lens

Others

  • Lens diameter : Ø20 to Ø108mm
  • PD : 45 to 90mm (0.25mm steps)
  • Speed : 0.1S
  • ABBE : 30 to 60
  • Display : TFT LCD (5.6″)
  • Printer : Thermal print
  • Dimensions : 222(L)x161 (W)x372(H)mm
  • Package : 430(L) x 235(W) x 295(H)mm
  • Gross Weight : 7 Kg
  • Power : AC220V/50HZ; AC110V/60Hz

Data Sheet

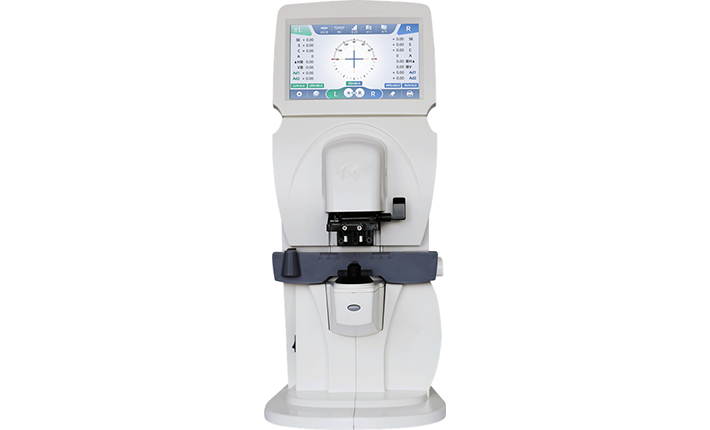

Auto Lensmeter – L900

FEATURES

  • 7.0 – inch HD Touch color Display
  • Stremlined, faddish, abundant and atmospheric design
  • Green LED light source, ABBE compensation no required
  • Food-grade ABS material case, zero failure rate quality standard
  • Rapidly and automatically determine and measure the progressive lens in high precission
  • Upgrade Hartmann intelligent measurement technology, faster, more accurate and more stable

TECHNICAL INDEX

  • Measuring range : 0 to± 25D ( 0.01D/0.06D/0.12D/0.25D steps)
  • Sphere : 0 to± 1OD ( 0.01D/0.06D/0.12D/0.25D steps)
  • Cylinder : Axis: 0° to 180° ( 1° steps)
  • ADD : 0 to 10D (0.01D/0.06D/0.12D/0.25Dsteps)
  • Prism : 0 to 206(0.016)
  • Cylinder mode : +, + / – ,-
  • Prism mode : X-Y : Cartesian Coordinates H: I, 0 . V: U, D
    P-B : Polar Coordinates
    mm : mm expression
Reading resolving power
  • PD Measure : 0.01D/0.06D/0.12D/0.25D

Measure single vision lens, bifocal lens,trifocallens and progressive lens,etc.
Contact lens measure
UV transmissivity test

  • Measurable transmissivity : > 10% ; > 20 % at± 1OD and over

Contact lenses : 0 to± 25D, BC 6.00 to 9.00
Display : 7.0-inch HD touch color display
Menu : readable diagram.easy operation
Lens diameter : 20mm-100mm
Power source : AC100 ( ± 10%)-240 (± 10%)V 50/60Hz 40VA
Power consumption : 40 Watt
Weight : 6.8 Kg

Operation Interface

Data Sheet
