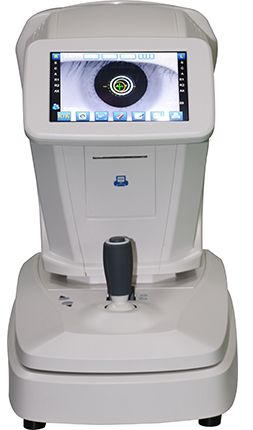

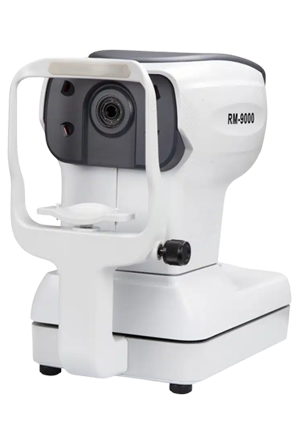

MAIN TECHNICAL INDEXES

Measurement Parameters :

• SPH : -20.00 m-1~ +20.00 m-1( VD=12mm，0.01 m 1、0.06 m-1、0.12 m-1 0.25 m-1 unit ), deep myopia measurement available
• CYL : 0.00 m-1 ~ ±10.00 m-1 (0.25 m-1 unit)
• Axis(AX) : 1°~ 180° (1° unit)
• Radius of Corneal Curvature : : 5.0 ~ 10.0mm (0.01mm unit)
• Corneal Power : 33.00 m-1~ 67.00 m-1 (in case that the corneal equivalent refractive power is 1.3375)

Other Parameters

• Screen : 10.4″TFT touch screen (angle adjustable)
• Printer : 57mm thermal printer, auto paper cutting
• Measuring Light Energy :＜30uW (prevent injury to eyes during measuring)
• Electrical Power : AC100 ~ 250V, 50/60Hz
• Consumption : 60AV
• Weight : 24 Kg
• Dimensions : L451mm×W309mm×H502mm

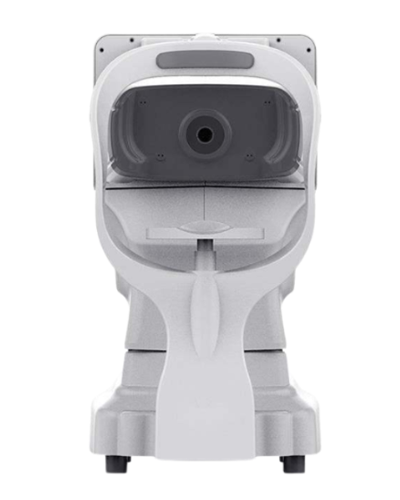

FEATURES

• High cost performance Hartmann Computer Refractometer
• Internationally leading split image focusing technology, classic exterior design, and high – quality material production
• Using Hartmann imaging principle technology

SPECIFICATIONS

Measurement Range

• Spherical mirror degree : -20m-1 to +20m-1 (minimum resolutions is 0.01m-1)
• Column mirrorness (absolute value) : 0m-1 to 6m-1 (minimum resolutions is 0.01m-1)
• Column mirror axis : 00-1800 (with a minimum resolution of 10)
• Curvature radius : 6.5mm – 9.4mm (minimum resolution is 0.01mm)
• Main meridian axis position : 00-1800 (with a minimum resolution of 10)

Hardware specifications

• Monitor : 7-inch TFT touch screen with adjustable viewing angle
• Printer : 57mm thermal printer automatic paper cutting
• Visible light intensity value at the exit pupil : < 31x
• Power supply voltage : AC100-240 V
• Power Frequency : 50-60 Hz
• Power consumption : 60 VA
• Net Weight : 24 Kg
• Overall dimensions : 510mm (long) x 300mm (Wide) x 428mm (height)

Features:

• Steamlined design, smooth and modern.
• n lilne with ergonomic principles, better fit the human’s facial features.
• Fast lens switching can shorten the inspection time and reduce the fatigue of human.
• 8″ tilting color touch screen, see more and clear.
• The built-in high-brightness LED light makes the near vision chart evenly bright and the visual target is clearer.

Specifications:

• Sphere :-19.00D~+16.75D 0.25D step
• Cylinder : -8.75D~+8.75D 0.25D step
• Axis : 0~180° 1° step
• Prism : 0~20△ ,0.1△ step
• Prism base : 0~360° 1° step
• Pupil Distance : 48~80mm,1mm step
• Distance : 350mm~700mm
• VD : 12mm,13.75mm,16mm,18mm,20mm
• Auxiliary Lens
  – Binoculus (￠=1.0mm)
  – RMV/RMH
  – RL(Right eye), GL(Left eye)
  – Polaroid (Right eye 135°/45°; Left eye 45°/135°)
  – Prism (Right 6△BU, 10△BU),(Left 3△BD,10△ BI)
  – Cross Cylinder Lens(±0.50D Axis=90°)
  – PD Lens
• Rotary prism : 0~20△ (0.1△ /0.5△)
• Cross cylinder lens : ±0.25D
• Retinoscope : +1.50D(67cm),+2.00D(50cm)
• AP head size : 360mm*80mm*26mm 2Kg
• Power Supply : 100V~240V 60/50HZ

FEATURES

• It’s a new generation of phoroptor reference the foreign similar produce.
• This equipment use the comprehensive centralized operation and large dial.
• Improve the operating performance.
• The cross cylinder is auto connecting with the cylinder lens coordinate.
• Build-in astigmatic lens and axis knob are synchronism linkage.
• Settle the axis and astigmatic examine at one go. Build-in various auxiliary lens. Overall check the ophthalmic function.

SPECIFICATIONS

Measurement Range

• Sphere powers range : +16.75D to -19.00D, with minimum reading 0.25D or 0.12D
  (When +0.12D auxiliary lens or optional +/-0.12D lens is in use) +26.75D to -29.00D (When optional +/-10.00D lens is in use)
• Cylinder powers range : 0.00D to -6.00D, Step:0.25D or 0.50D (Whenlens auxiliary is in use)
  0 to -8.00D (when -2.00D auxiliary lens is in use)

• Astigmatic axis scale : 0° to 180°, Step:5°
• Cross cylinder : +/-0.25D or+/-0.50D optional
• Rotary prism : 0 to 20∆D in 1∆D
• Interpupillary adjustment : 48mm to 75mm in 1mm step (right and left synchronized)
• Forehead rest adjustment : 16mm backward and forward
• Convergence : The optical axes of the lenses are aligned at a distance of 400mm from the vertexes of the corneas (2mm each for right and left inward) Interpupillary distance enabling convergence=51mm to 80mm
• Corneal distance device : 2mm forward and 5mm backward from standard plane
• Effective field of view : 19mm

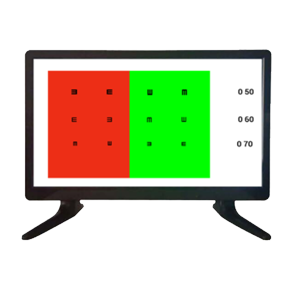

Features

• Clear words, soft light and eye protection
• Multiple icons
• Naked eye detections
• Bluetooth connective
• Plate controllable

Specifications

• Chart number : 31pcs of charts
• Icon baffle : Separation, horizontal, vertical
• Filter function : Red green filter
• Icon window size : 250(W) X 218(H)mm
• Power : AC220V 50HZ/150W
• Testing distance : 0.3m or 1.1m (0.3m for near testing)
• Icon control : Tablet or online
• Using lights : Halogen bulb or LED lamp
• Machine weight : 20 Kg

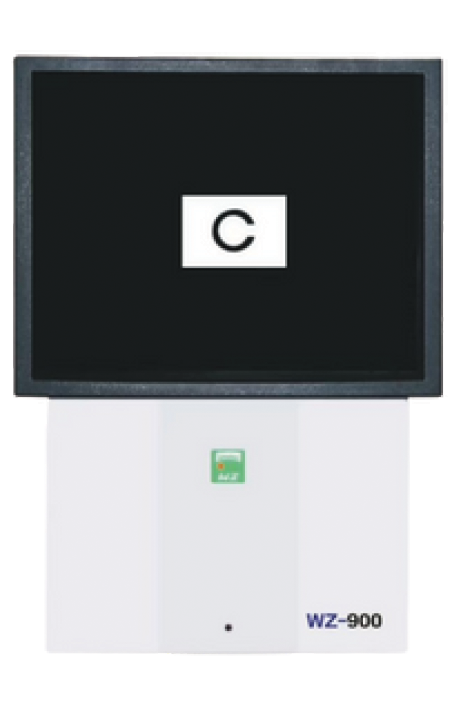

Features

• Intelligent 3D with polarization function
• With Result speaking visual test
• Brightness adjustment
• Red/green adjustment
• Intelligence screen protection
• Test distance adjustment

Complete Optotypes :

• LAN’s ring optotypes
• International E optotype
• Children optotypes
• Numeric optotypes
• Letter optotypes
• Astigmatic optotypes
• Color blindness optotypes
• Cross optotypes
• Markovrod optotypes
• Binocular balance optotypes

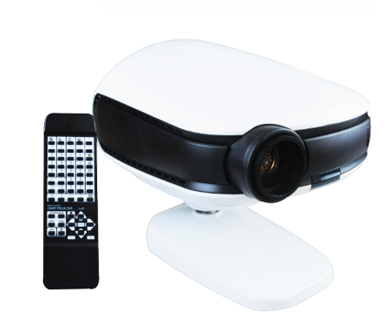

Characteristics

• Bright (LED), high-quality images.
• Quiet and quick chart selection.
• 41 different charts (including: red/green and polarized lenses, binocular).
• Balance testing, stereoscopic vision, fixation testing, fusion testing, and object inequality testing.
• 2～8 meters projection distance
• Adjust icon brightness remotely through mobile app.
• User programmable programs (2 sets of programs, each with up to 30 charts).
• Easy to connect with other optometry devices.

Technical Data

• Chart : 41 charts (including red/green and polarized )
• Projection Distance : 2～8m
• Chart Magnification : 30 times (5m)
• Chart Size : 333(length)×221mm(width)
• Chart Speed Average : 0.15 seconds
• Light Source : LED lamp
• Auto Off Function : Auto shutdown after 10 minutes of inactivity
• Voltage : 100-120V～200-240V50/60Hz
• Power : 60W
• Program : 2 sets of programs, each with a maximum of 30 charts

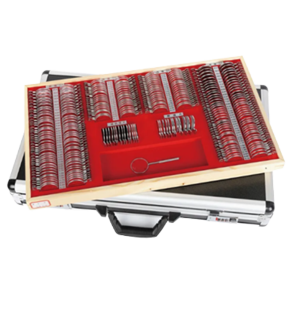

Features

• C-68m : 68 Pcs, Shiny Metal Rims
• C-104m : 104 Pcs, Shiny Metal Rims
• C-158m : 158 Pcs, Shiny Metal Rims
• C-232m : 232 Pcs, Shiny Metal Rims
• C-266m : 266 Pcs, Shiny Metal Rims
