Features

• Colorful touch screen
• With printer and PD, inner UV part
• Automatic recognition of single and progressive lens
• Strong aluminum case for single packing

SPECIFICATIONS

Measurement Scope

• Sphere : 0 to ±25D(0.01D, 0.12D, 0.25D steps)
• Cylinder : 0 to ±9.99D(0.01D, 0.12D, 0.25D steps)
• Axis : 0-180° (1° steps)
• ADD : 0 to 9.99D (0.01D, 0.12D, 0.25D steps)
• Prism : 0 to 15Δ(0.01Δ, 0.12Δ, 0.25Δ steps)

Mode

• Cylinder : +, +/-,-
• Prism : X-Y,P-B
• Contact Lens : Soft / Hard
• Measuring Mode : Single/ Progressive/ Automatic recognition contact lens

Others

• Lens diameter : Ø20 to Ø108mm
• PD : 45 to 90mm (0.25mm steps)
• Speed : 0.1S
• ABBE : 30 to 60
• Display : TFT LCD (5.6″)
• Printer : Thermal print
• Dimensions : 222(L)x161 (W)x372(H)mm
• Package : 430(L) x 235(W) x 295(H)mm
• Gross Weight : 7 Kg
• Power : AC220V/50HZ; AC110V/60Hz

FEATURES

• High cost performance Hartmann Computer Refractometer
• Internationally leading split image focusing technology, classic exterior design, and high – quality material production
• Using Hartmann imaging principle technology

SPECIFICATIONS

Measurement Range

• Spherical mirror degree : -20m-1 to +20m-1 (minimum resolutions is 0.01m-1)
• Column mirrorness (absolute value) : 0m-1 to 6m-1 (minimum resolutions is 0.01m-1)
• Column mirror axis : 00-1800 (with a minimum resolution of 10)
• Curvature radius : 6.5mm – 9.4mm (minimum resolution is 0.01mm)
• Main meridian axis position : 00-1800 (with a minimum resolution of 10)

Hardware specifications

• Monitor : 7-inch TFT touch screen with adjustable viewing angle
• Printer : 57mm thermal printer automatic paper cutting
• Visible light intensity value at the exit pupil : < 31x
• Power supply voltage : AC100-240 V
• Power Frequency : 50-60 Hz
• Power consumption : 60 VA
• Net Weight : 24 Kg
• Overall dimensions : 510mm (long) x 300mm (Wide) x 428mm (height)

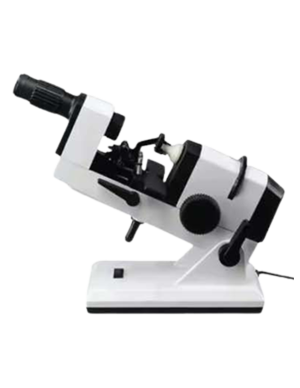

Technical Data

• Measurement Range : 0 to ±25D
• Cylinder Axis Range : 0-180° Step 1°
• Prism Base Angle : 0~180°
• Dimension of Objective Lens : Φ16~Φ86mm
• Dimension : 275× 120× 430mm
• Lighting Bulb : ~220V/-3V 3W or ~110V/-3V 3W
• Voltage : 110V~220V

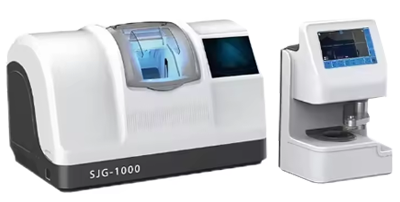

Edging system

• Glass, resin, space film and other materials of the lens can be processed, rapid edging to be molding
• Bevel or plat band can be polished.
• Various grinding pressure meet the demands of different lenses
• On-line function

Tracing system

• Set the optical scan, the center of positioning as one
• It takes 0.5 seconds to get the frame shape
• Real-time imaging guidance confirms whether the best center position is reached
• Automatically eliminate the lens degree, prism and artificial parallax effect
• High resolution 800*600 true color 7-inch touch screen
• At the same time connect two SJG-800A automatic milling machine composed of processing center
• Simple operation, low failure, maintenance-free

Specifications

Auto Lens Edger

• Dimension : 680 x 460 x 450 mm
• Weight : 60 Kg
• Voltage : AC 220v/110v 50/60Hz
• Power : 550 Watt
• Size range : 22-80 mm
• Clamping pressure : 3 gears adjustable
• Wheel diameter : ɸ90mm
• Screen : 8-inch touch screen

Auto Lens Scanner

• Dimension : 230 x 370 x 200 mm
• Weight : 5 Kg
• Voltage : AC 220v/110v 50/60Hz
• Power : 60 Watt
• Screen tilt angle : 20° – 100°
• Screen : 7 inch touch screen
• Qty of connecting with the main machine : 1 Unit

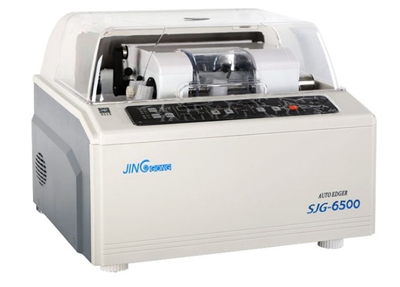

With the advanced technology and the imported PC wheel, SJG- 6500 Automatic Edger (PC Lens Compatible) gives the best performance in processing PC lens, as well as the normal CR39 lens and the glass lens.

Techinical Standard

• Lens Diameter : Ø18-Ø80mm
• Lens gripping force : multi-steps
• Stand wheel diameter : Ø100mm
• The speed of the sand wheel : 16.7m/s
• Power : AC 220V (110V)/ 50HZ (60Hz), 400VA
• Working temperature : 5°C-40°C
• Size of the machine : 520 x 480 x 380
• Weight : 44 kg
• Circulating water connection or city water connection

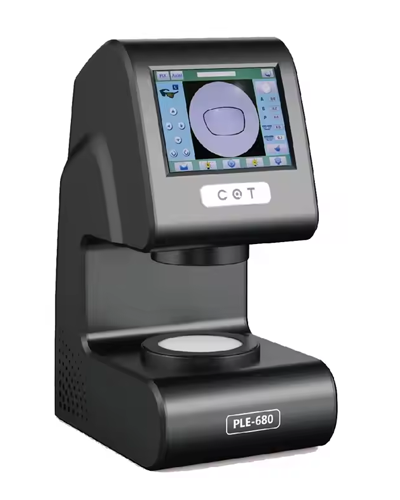

Features

• Compact and pretty appearance design
• No vision difference on the display screen, no deformation and accurate lens layout obtained
• Compensating the accuracy of the lens and suction cup position
• Bifocal lens can be positioned quickly and accurately,
• The small lens can also be put in clear projection

Features

It is an indispensable machine to fully automatic edger. Use this machine to make direct drilling in the gasket. The gasket can replace for dieplate in using the edger.
It saves the trouble of opening the mould. It is practical, convenient and labor-saving

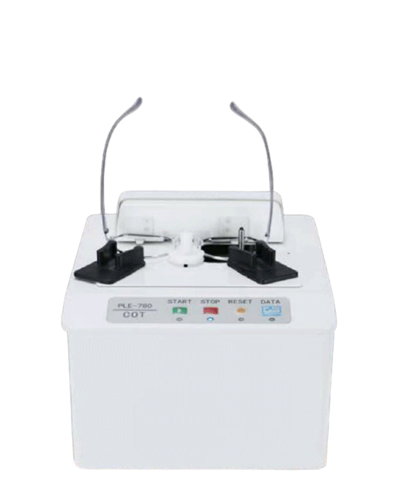

Features

• Being based on the patterned lens or the original lens from
  your eyeglasses to make the standard pattern.
• It is easy and convenient to use clamping device equipped
  with 3 suction cup bases according to different model of lens edger and easy operation, quick speed of cutting and accuracy.
• Suction cup base: Topcon, Briot, Takubo

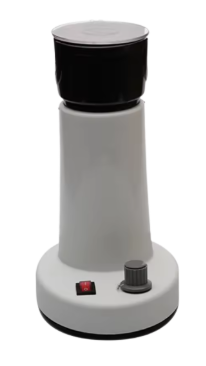

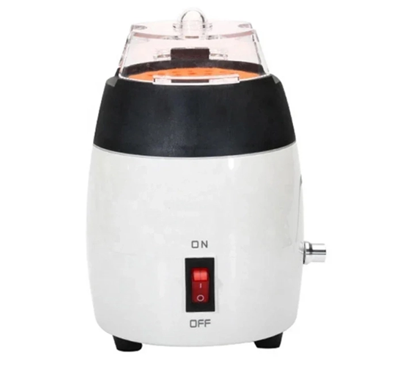

SPECIFICATIONS

• Power of heating coil : 450W
• Power of electric air fan : 6W
• Max heating temperature : 150°C
• Min heating temperature :80°C
• Wind speed : 1.2m/s
