Uji penglihatan lebih akurat dengan phoroptor modern – solusi lengkap untuk pemeriksaan mata

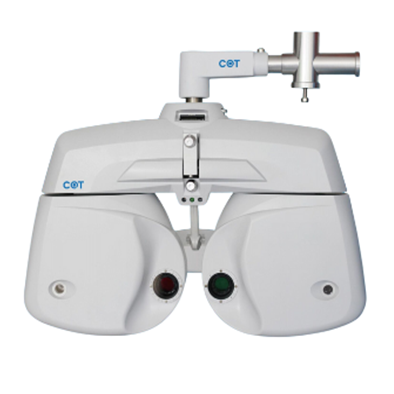

Digital Phoroptor – KF ZD6000

  • Bluetooth wireless communication provides flexible operations space for Optometrist
  • Simple operation interface provide efficient and convenient optometry experience
  • Innovative design, table control, desiogn for fashion stores
  • Support personalized programming, which is conductive to the unification of optometry standards in chain stores

Features

  1. Check Window
  2. Corneal Alignment Window
  3. Forhead support adjustment knob
  4. Near vision Test rod holder
  5. Horizontal blister
  6. Near vision chart lamp
  7. Power Indicator
  8. Fix the knob with the near vision test rod
  9. Horizontal adjustment knob
  10. Locking screw
  11. Magnet mask
  12. Corneal Instrument distance measuring ruler
  13. Forehead bracket
  14. Power plug-in board
  15. Fixing screw

Technical Specifications

  • Sphere : -19.00 D ~ +16.75 D (step: 0.25 / 0.5 / 1 / 3 D)
  • Cylinder : 0.00 D ~ ±8.75 D (step: 0.25 / 0.5 / 1 / 3 D)
  • Cylinder Axis : 0 ~ 180° (step: 1° / 5°)
  • Prism : 0 ~ 20 Δ (step: 0.1 / 0.5 Δ)
  • Prism shape : base up, base down, base in, base out
  • Near distance : mechanical convergence with the optical axis at a distance of 30-40 cm from the ey
  • Binocular balance : rotating prism, polarizing filter and redgreen filter
  • Cross cylinder : ±0.25D
  • Interpupillary distance PD : 50 ~ 80 mm (step: 0.5 /1.0 mm)
  • Retinoscope : +2.00D or +1.50D on both sides
  • Corneal alignment : 12 to 20 mm (step: 2 mm)
  • Visible angle : 35°
  • Size : 350(W)*300(H)*80(D)mm

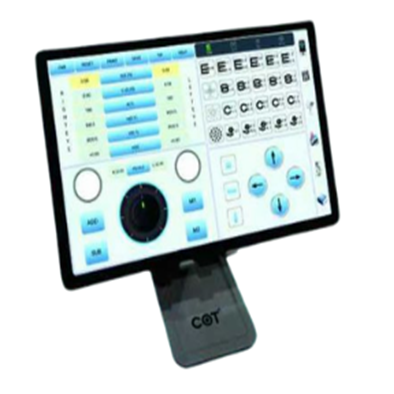

  • Accessories : Bluetooth printer, tablet computer
  • Power supply : AC 100-220V or 220-240V, 50/60Hz
  • Power : 60 Watt
  • Nett Weight : 4 Kg

Features

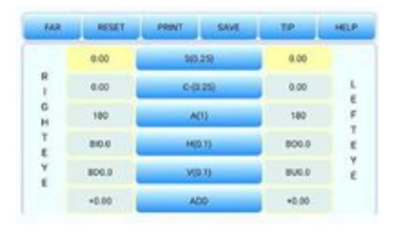

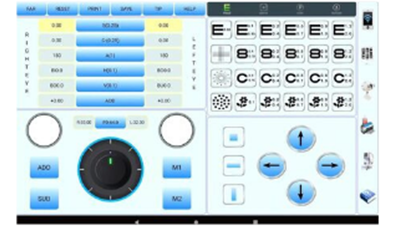

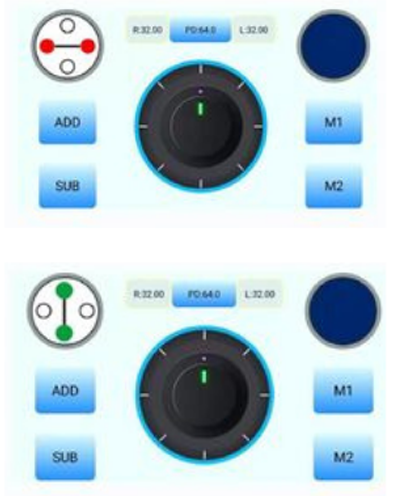

Main interface function display

Spherical mirror step adjustment

Cross column mirror adjusment

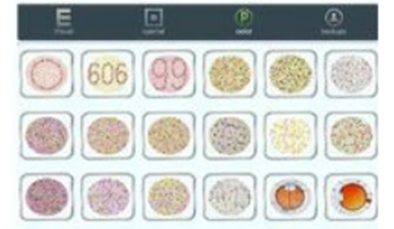

Color weakness inspection area

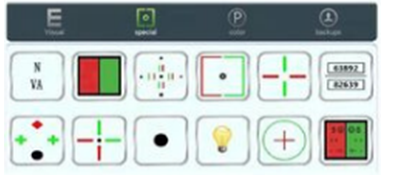

Functional visual display area

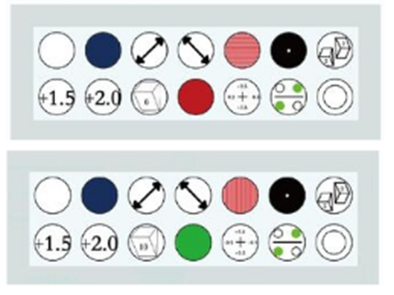

Auxilary lens display area

Data Sheet

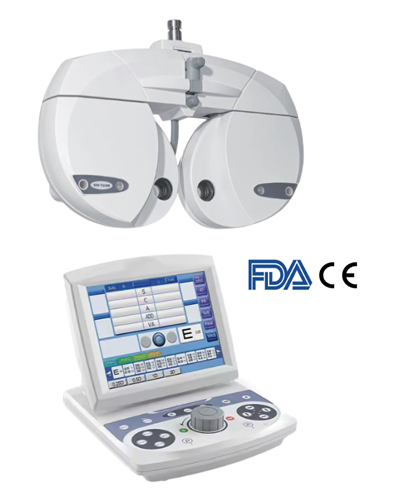

Digital Phoroptor – GD 8802

Features:

  • Steamlined design, smooth and modern.
  • In lilne with ergonomic principles, better fit the human’s facial features.
  • Fast lens switching can shorten the inspection time and reduce the fatigue of human.
  • 8″ tilting color touch screen, see more and clear.
  • The built-in high-brightness LED light makes the near vision chart evenly bright and the visual target is clearer.

Specifications:

  • Sphere :-19.00D~+16.75D 0.25D step
  • Cylinder : -8.75D~+8.75D 0.25D step
  • Axis : 0~180° 1° step
  • Prism : 0~20△ ,0.1△ step
  • Prism base : 0~360° 1° step
  • Pupil Distance : 48~80mm,1mm step
  • Distance : 350mm~700mm
  • VD : 12mm,13.75mm,16mm,18mm,20mm
  • Auxiliary Lens
    – Binoculus (￠=1.0mm)
    – RMV/RMH
    – RL(Right eye), GL(Left eye)
    – Polaroid (Right eye 135°/45°; Left eye 45°/135°)
    – Prism (Right 6△BU, 10△BU),(Left 3△BD,10△ BI)
    – Cross Cylinder Lens(±0.50D Axis=90°)
    – PD Lens
  • Rotary prism : 0~20△ (0.1△ /0.5△)
  • Cross cylinder lens : ±0.25D
  • Retinoscope : +1.50D(67cm),+2.00D(50cm)
  • AP head size : 360mm*80mm*26mm 2Kg
  • Power Supply : 100V~240V 60/50HZ

Data Sheet

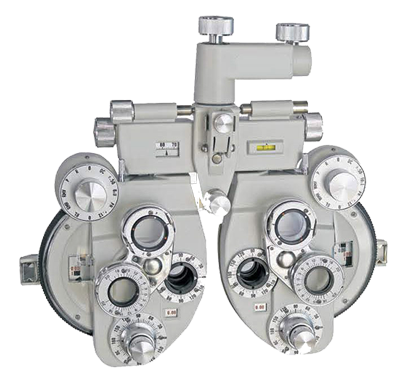

Phoroptor

FEATURES

  • It’s a new generation of phoroptor reference the foreign similar produce.
  • This equipment use the comprehensive centralized operation and large dial.
  • Improve the operating performance.
  • The cross cylinder is auto connecting with the cylinder lens coordinate.
  • Build-in astigmatic lens and axis knob are synchronism linkage.
  • Settle the axis and astigmatic examine at one go. Build-in various auxiliary lens. Overall check the ophthalmic function.

SPECIFICATIONS

Measurement Range

  • Sphere powers range : +16.75D to -19.00D, with minimum reading 0.25D or 0.12D
    (When +0.12D auxiliary lens or optional +/-0.12D lens is in use) +26.75D to -29.00D (When optional +/-10.00D lens is in use)
  • Cylinder powers range : 0.00D to -6.00D, Step:0.25D or 0.50D (Whenlens auxiliary is in use)
    0 to -8.00D (when -2.00D auxiliary lens is in use)
  • Astigmatic axis scale : 0° to 180°, Step:5°
  • Cross cylinder : +/-0.25D or+/-0.50D optional
  • Rotary prism : 0 to 20∆D in 1∆D
  • Interpupillary adjustment : 48mm to 75mm in 1mm step (right and left synchronized)
  • Forehead rest adjustment : 16mm backward and forward
  • Convergence : The optical axes of the lenses are aligned at a distance of 400mm from the vertexes of the corneas (2mm each for right and left inward) Interpupillary distance enabling convergence=51mm to 80mm
  • Corneal distance device : 2mm forward and 5mm backward from standard plane
  • Effective field of view : 19mm
